Have you ever looked through your viewfinder, found it slightly soft or fuzzy, yet your photos came out perfectly sharp? If so, your diopter is almost certainly the culprit, and the fix takes about ten seconds.
The diopter is one of the most useful little controls on your camera, and also one of the most overlooked. It matters even more if you wear glasses or contact lenses. Here is what it does, how to set it correctly, and how to know when you have got it right.
What Is a Camera Diopter?
A camera diopter is a small focusing adjustment built into the viewfinder eyepiece. Its only job is to sharpen the viewfinder image for your particular eyesight, so that what you see through the eyepiece looks crisp and clear.
The word itself comes from optics: a dioptre is the unit used to measure the power of a lens, the same unit your optician uses for your prescription. Your camera’s diopter contains a tiny corrective lens you can adjust, usually across a range of roughly -3 to +1 dioptres, to suit short-sighted or long-sighted eyes.
Crucially, it corrects the view for you. Two people can pick up the same camera, and each may need the diopter set differently to see the viewfinder clearly. It is a personal setting, not a fixed one.
What the Diopter Does, and What It Doesn't
This is where a lot of confusion creeps in, so it is worth being crystal clear. The diopter changes only how sharp the viewfinder looks to your eye. It has no effect whatsoever on the photograph you take.
It does not touch your focus, your exposure, your aperture or your shutter speed. You could set it completely wrong and still capture pin-sharp images, because the camera focuses the lens independently of what your eye is doing at the eyepiece.
The tell-tale sign
That leads to the classic symptom: a viewfinder that looks blurry while your pictures come back sharp. If that sounds familiar, the diopter is set for someone else’s eyes, not yours. Nothing is broken, and nothing is wrong with your lens or sensor. You simply need to dial the diopter in.
Where to Find the Diopter on Your Camera

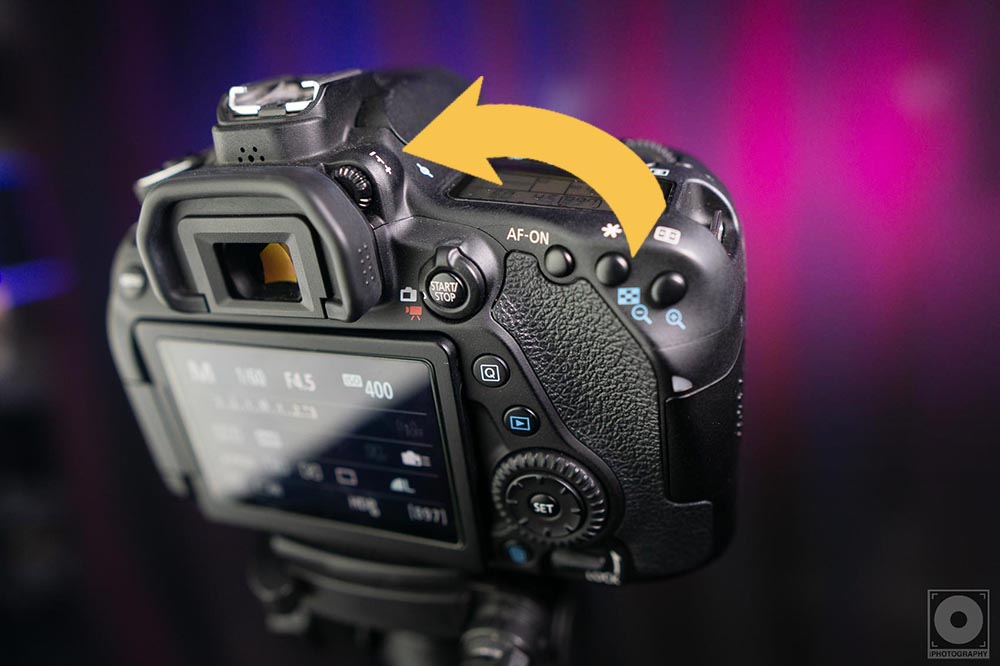

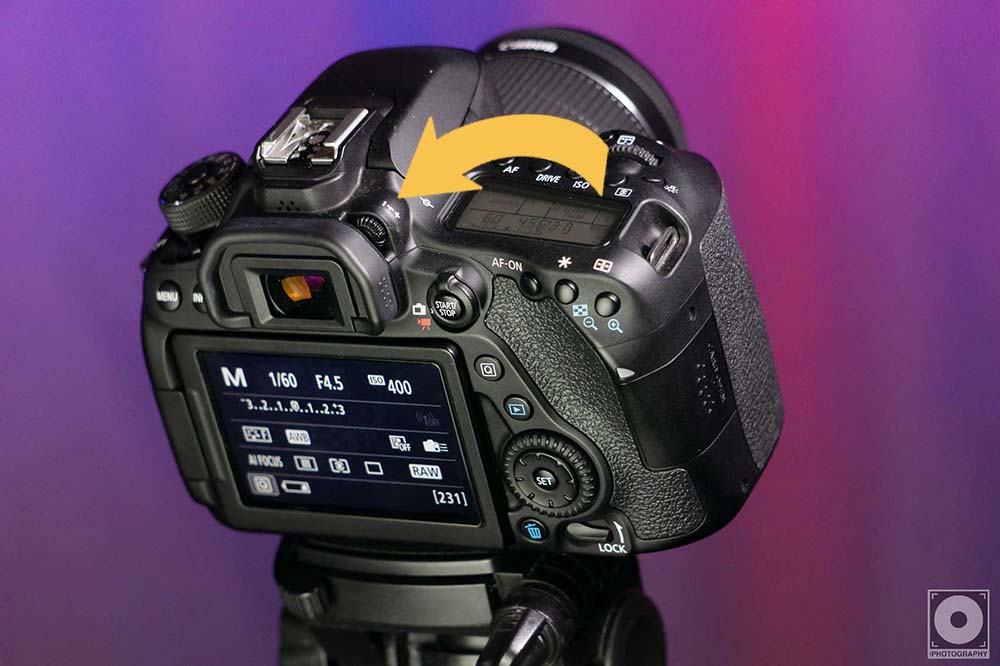

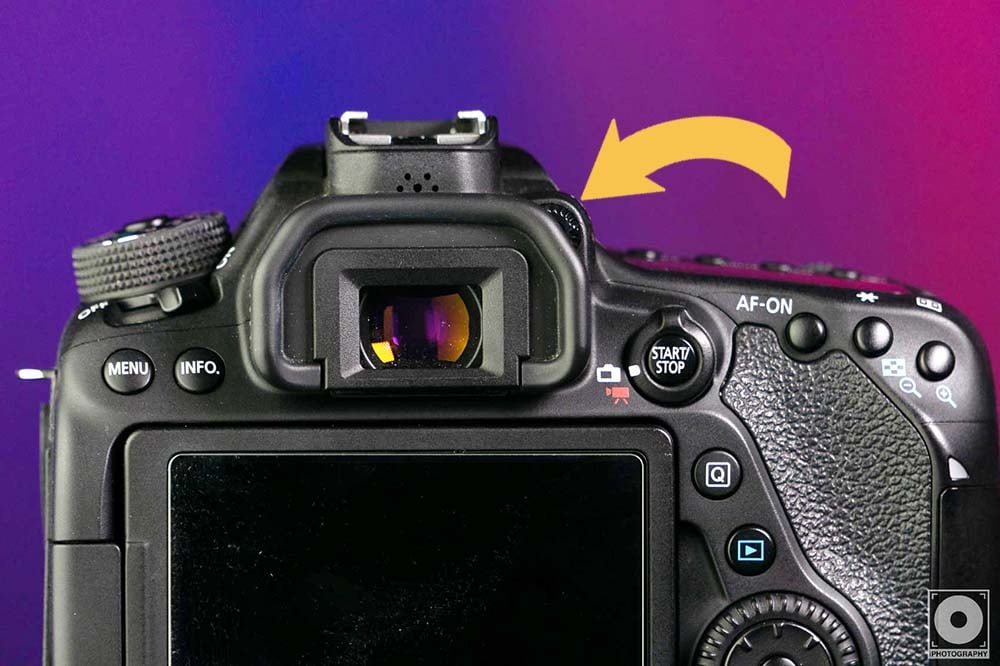

On most cameras the diopter sits right beside the viewfinder eyepiece, tucked into the top corner. It usually takes one of three forms: a small knurled wheel you roll with a fingertip, a recessed slider, or a pull-out dial that you tug outward before turning.
Both optical viewfinders on DSLRs and electronic viewfinders on mirrorless cameras have one, so this applies whatever you shoot with. If your camera has a soft rubber eyecup around the eyepiece, you may need to slide it off to reach the control underneath.
If you genuinely cannot find it, your camera’s manual will show its exact location, often labelled as the “dioptric adjustment”. It is easy to nudge by accident when the camera goes in and out of a bag, which is another reason viewfinders sometimes go soft for no obvious reason.
How to Set Your Diopter Correctly

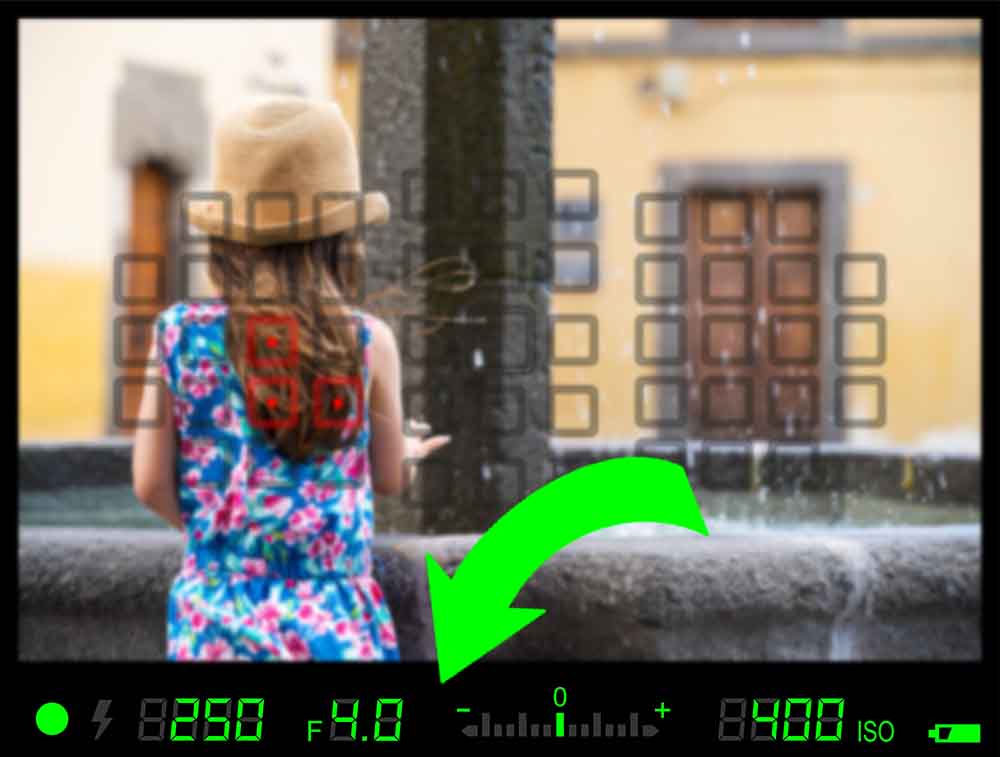

The single most important trick is this: you are focusing your eye on the viewfinder’s own display, not on the scene in front of you. Get that right and the rest is simple. Here is the reliable method:
- Point the camera at a plain, bright surface such as a blank wall or the sky, or half-press the shutter so the information readouts and autofocus points light up.
- Look through the viewfinder and pay attention to the numbers along the edge and the AF points, not the scene itself.
- Turn the diopter dial slowly in one direction, then the other, watching those readouts.
- Stop at the point where the display text and AF points snap into their sharpest, cleanest state.
- Lower the camera, blink and relax your eyes, then look again to confirm it still looks crisp.
Focusing on the data display rather than the scene stops the lens’s own focus from fooling you. The readouts sit at a fixed optical distance, so when they look sharp, your diopter is correctly matched to your eye.
How Do You Know It's Set Correctly?

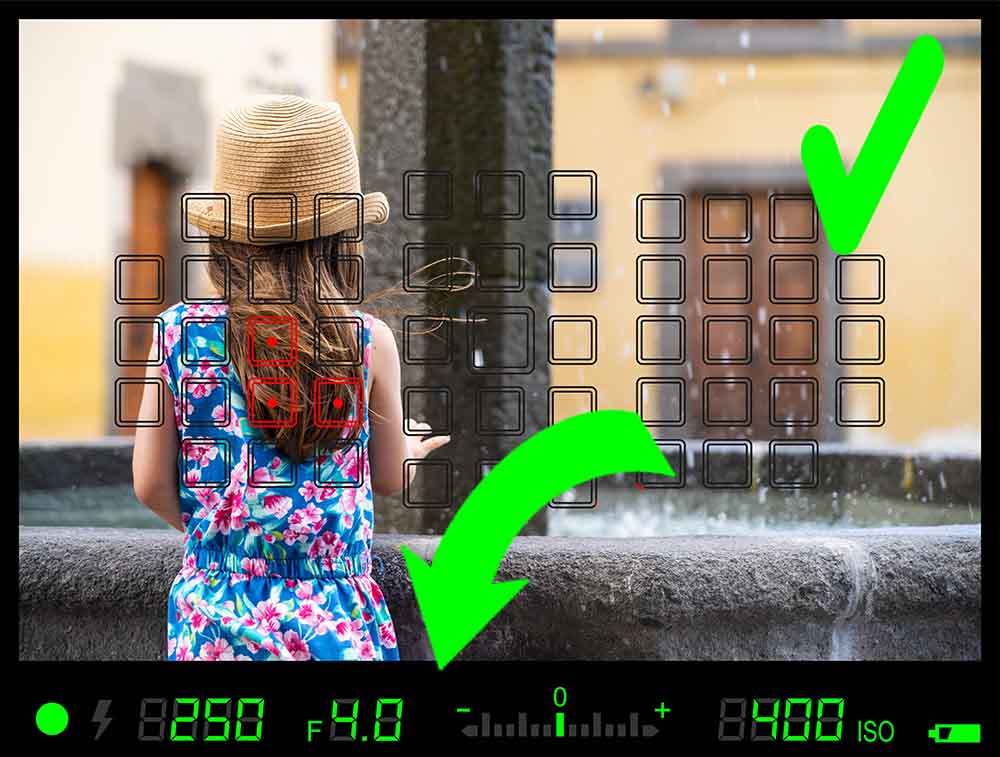

You will know the diopter is right when the fixed information in the viewfinder looks genuinely sharp, not merely acceptable. The exposure numbers and AF points should have clean, hard edges rather than a soft glow around them.
It should also feel effortless. If you find yourself squinting or your eye tires quickly, the setting is still slightly off. A correctly set diopter is comfortable to use for long stretches.
The confirmation test
For a final check, half-press the shutter on a subject until the camera confirms focus with its beep or a green box. At that moment both the scene and the readouts should look sharp to your eye. If the camera says the shot is in focus but the scene still looks soft through the eyepiece, nudge the diopter a touch until it clicks into clarity. One last thing: if you sometimes switch shooting eyes, set and check it for whichever eye you actually use.
Using the Diopter with Glasses or Contact Lenses
This is where the diopter really earns its keep, because it can genuinely change how comfortable your camera is to use.
If you wear contact lenses
Contacts correct your vision fully, so treat your eyes as normally sighted and set the diopter as anyone would, often somewhere near zero. Nothing special to do here.
If you wear glasses
You have two good options. The first is to keep your glasses on and set the diopter to suit. Fit a soft rubber eyecup to protect your lenses, and check you can still see into the corners of the frame, because glasses hold your eye further back and can hide the edges. A viewfinder with a high eyepoint helps here.
The second option is to take your glasses off and let the diopter do the correcting for you. For mild to moderate short or long sight, the diopter’s range is often enough to bring the viewfinder perfectly sharp without your glasses, which many photographers find far more comfortable. The catch is astigmatism: because it is directional, a diopter cannot correct it, so if you have a strong astigmatic prescription you will need to keep your glasses or contacts on.
When your prescription is too strong
If your correction sits outside the diopter’s range, all is not lost. Most camera makers sell screw-in correction eyepieces, sometimes called dioptric adjustment lenses, matched to a specific prescription. Fit one and you can shoot without glasses even with a stronger prescription.
Camera Diopter FAQ
Does the diopter change my photos?
No. It only sharpens the viewfinder image for your eye. Your focus, exposure and final photograph are completely unaffected by where the diopter is set.
My viewfinder is blurry but my photos are sharp. Why?
That is the classic sign the diopter is set for someone else’s eyesight. Adjust it to suit your eyes and the viewfinder will sharpen up, with no change to your images.
Can the diopter replace my glasses?
For simple short or long sight within its range, often yes, at least for shooting. It cannot correct astigmatism, which is directional and needs your glasses or contact lenses.
What if my prescription is stronger than the diopter range?
Keep your glasses on with a soft eyecup, or fit a screw-in correction eyepiece matched to your prescription so you can shoot without them.
Does the diopter affect the rear screen or Live View?
No. It only affects the eye-level viewfinder, whether optical or electronic. The rear LCD is never touched by the diopter.
“The camera is an instrument that teaches people how to see without a camera.”
Final Thoughts
The diopter is a tiny control that makes a surprisingly big difference. Set it once to match your eyes and the whole camera feels more precise, because you are finally seeing the viewfinder as clearly as your photos deserve. If you wear glasses, it is well worth experimenting with shooting without them, since many people find the diopter alone does the job beautifully.
Give it ten seconds the next time you pick up your camera, and check it now and then in case it has been knocked. Seeing clearly is the first step to shooting confidently.
If you would like a friendly, structured way to master the rest of your camera, our Photography for Beginners course walks you through it at your own pace.
And once your viewfinder is sharp, our guide to getting sharper pictures will help you nail focus every time.
